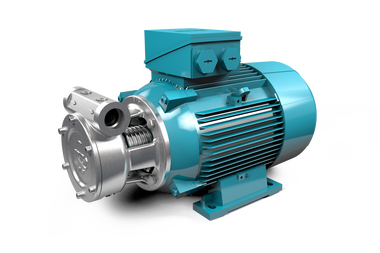

Peripheral Pumps
EDUR peripheral pumps feature a robust cast stainless steel housing (PN 16) and are ideal for handling a wide variety of fluids. They deliver low flow rates at high pressures, making them ideal for applications that require a compact design and precise pressure control.
Fields of Application and Conveyed Fluids
EDUR peripheral pumps are used in water and wastewater technology, energy technology, cooling technology, industrial cleaning technology as well as in different industrial technologies.
Variants of EDUR Peripheral Pumps
Peripheral pumps are available with the series PBU. They are available in stainless steel as well as with various shaft seal systems and drive solutions. As required, we deliver customer-specific configurations. Of course, we can also provide certificates of all authorized classification societies and necessary test reports.
Advantages
As with all EDUR-pumps, peripheral pumps stand out due to their efficiency, economy and reliability. Moreover, we would like to emphasize the following product advantages as well as technical characteristics:
- Low NPSH values
- Excellent control behavior
- Protection against dry running
- Application in vacuum operation
- Optional sensor-based operation monitoring
- Easy to install and maintain
- Robust construction
Technical data
- Flow rate: max. 14,5 m³/h
- Head: max. 145 m
- Permissible operating pressure: up to 16 bar
- Temperature: -50 °C up to +140 °C
- Viscosity: up to 115 mm²/s
Downloads
Operating Instruction

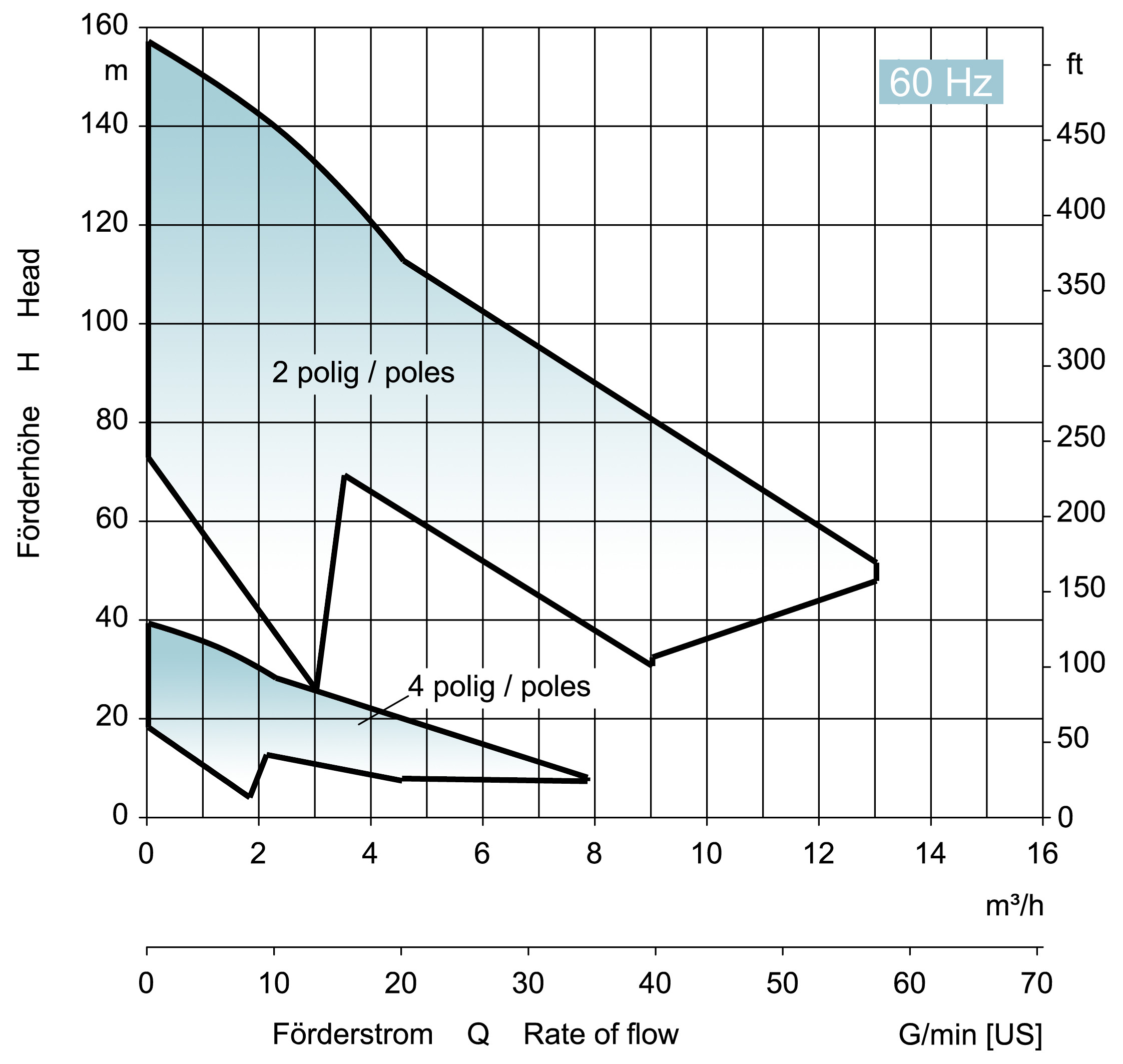

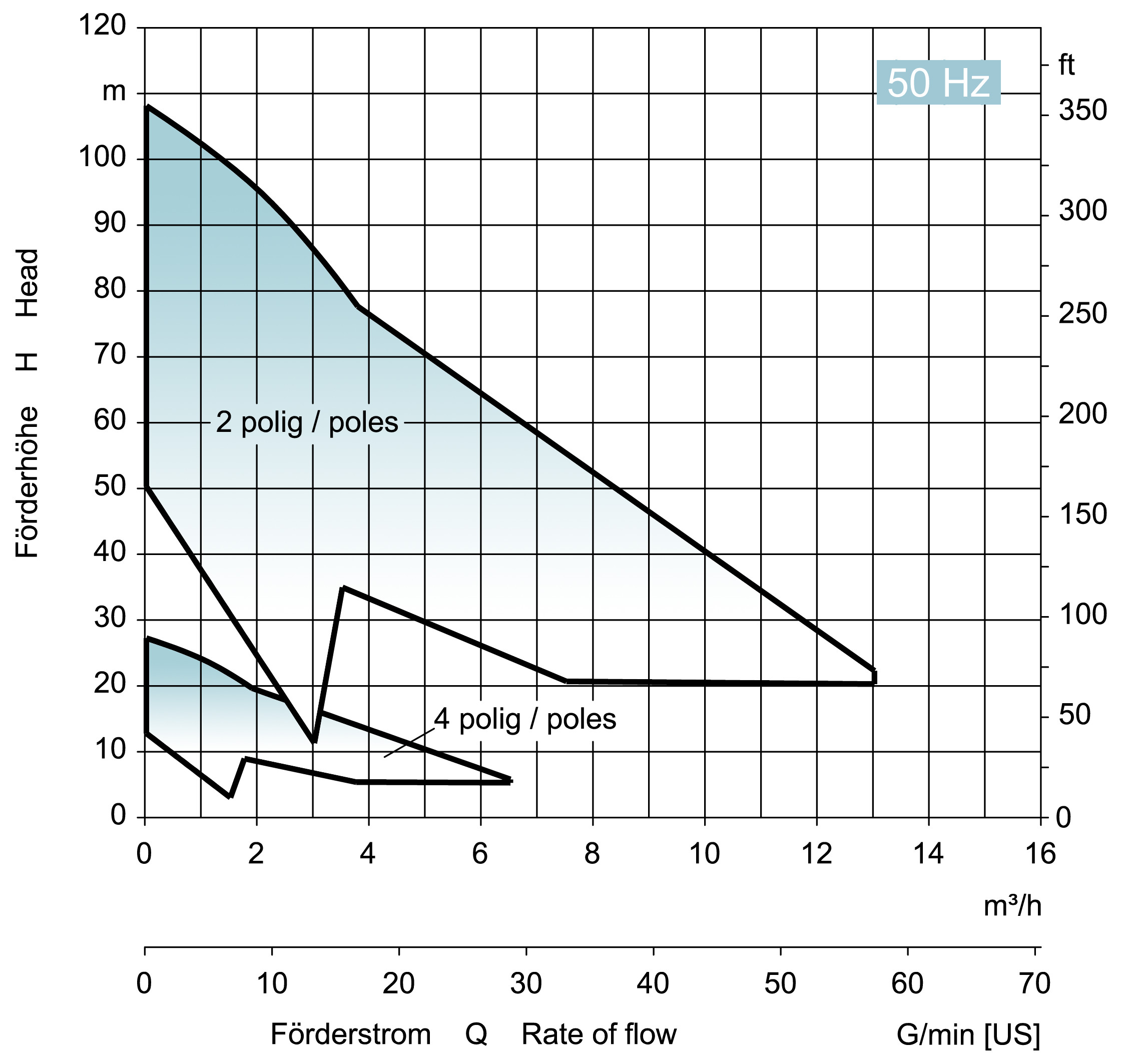

Characteristic Curves
Suitable Applications for Peripheral Pumps
Industrial Cleaning Technology, Water and Wastewater Technology, Energy Technology, Cooling Technology
